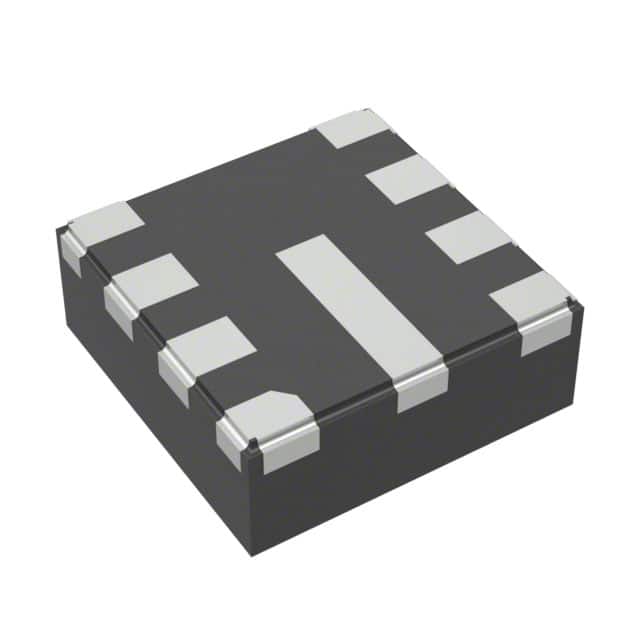

| Part Number | LMR36506MSC5RPERQ1 | LMR36506MSCQRPERQ1 | LMR36503MSC5RPERQ1 | LMR36506MSC3RPERQ1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Adjustable | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V |
| Voltage - Input (Max) | 65V | 65V | 65V | 65V |
| Voltage - Output (Min/Fixed) | 5V | 1V | 5V | 3.3V |
| Voltage - Output (Max) | - | 65V | - | - |
| Current - Output | 600mA | 600mA | 300mA | 600mA |
| Frequency - Switching | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 9-VFQFN | 9-VFQFN | 9-VFQFN | 9-VFQFN |
| Supplier Device Package | 9-VQFN-HR (2x2) | 9-VQFN-HR (2x2) | 9-VQFN-HR (2x2) | 9-VQFN-HR (2x2) |
