Please send RFQ , we will respond immediately.
| Part Number | LMR36015BRNXT | LMR36015FBRNXT | LMR36015ARNXT | LMR36015BRNXR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.2V | 4.2V | 4.2V | 4.2V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 60V | 60V | 58V | 60V |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A |
| Frequency - Switching | 1MHz | 1MHz | 400kHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

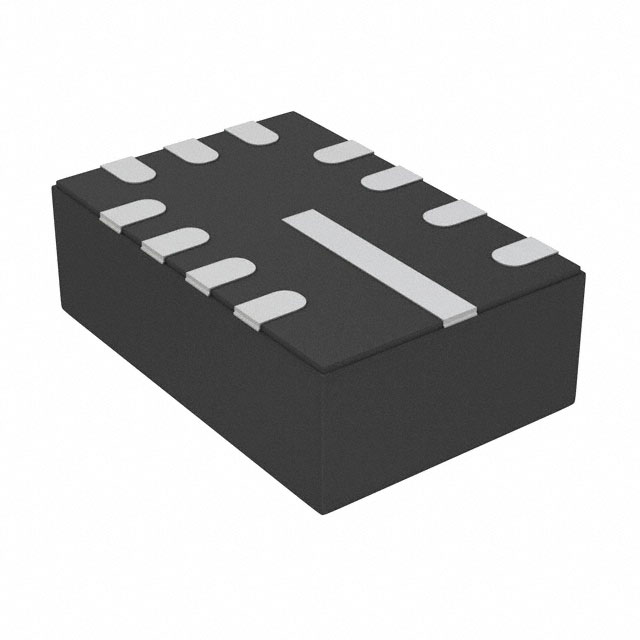

| Package / Case | 12-VFQFN | 12-VFQFN | 12-VFQFN | 12-VFQFN |
| Supplier Device Package | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) |
