Please send RFQ , we will respond immediately.
| Part Number | LMR33620BRNXR | LMR33620BRNXT | LMR33630BRNXR | LMR33620CRNXR | LMR33620ARNXR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.8V | 3.8V | 3.8V | 3.8V | 3.8V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 24V | 24V | 24V | 24V | 24V |
| Current - Output | 2A | 2A | 3A | 2A | 2A |
| Frequency - Switching | 1.4MHz | 1.4MHz | 1.4MHz | 2.1MHz | 400kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

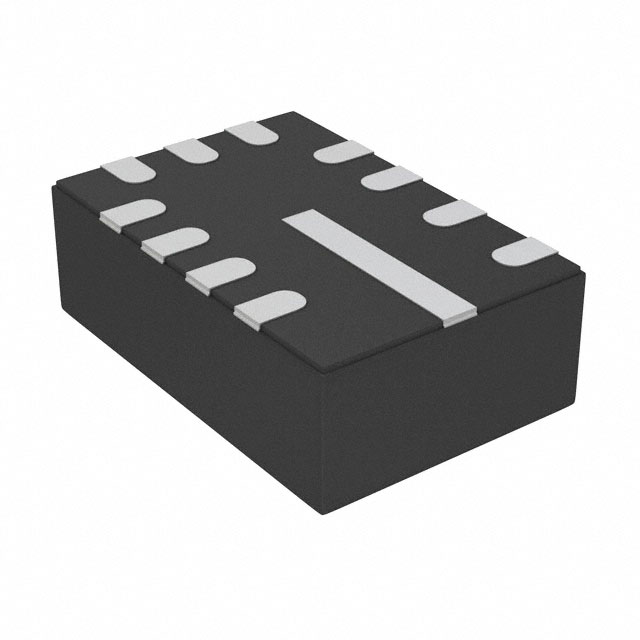

| Package / Case | 12-VFQFN | 12-VFQFN | 12-VFQFN | 12-VFQFN | 12-VFQFN |
| Supplier Device Package | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) | 12-VQFN-HR (3x2) |
