| Part Number | LMR24220TLX/NOPB | LMR24210TLX/NOPB | LMR24220TL/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 24V | 24V | 24V |
| Current - Output | 2A | 1A | 2A |
| Frequency - Switching | Up to 1MHz | Up to 1MHz | Up to 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

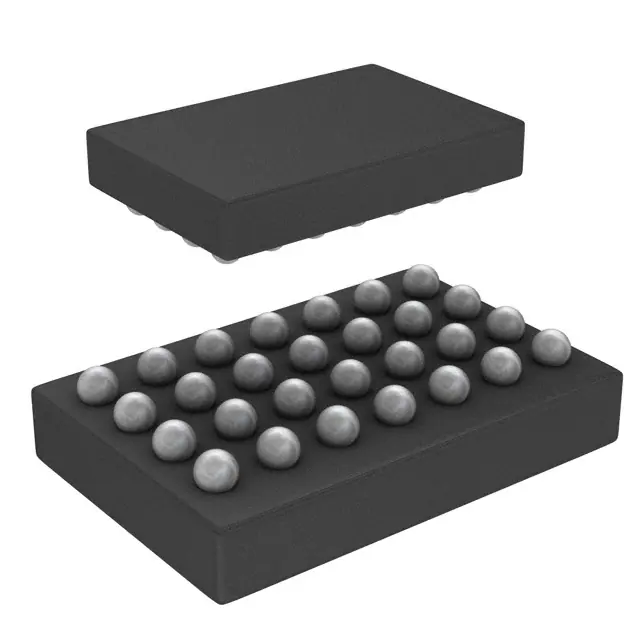

| Package / Case | 28-WFBGA, DSBGA | 28-WFBGA, DSBGA | 28-WFBGA, DSBGA |
| Supplier Device Package | 28-DSBGA | 28-DSBGA | 28-DSBGA |
