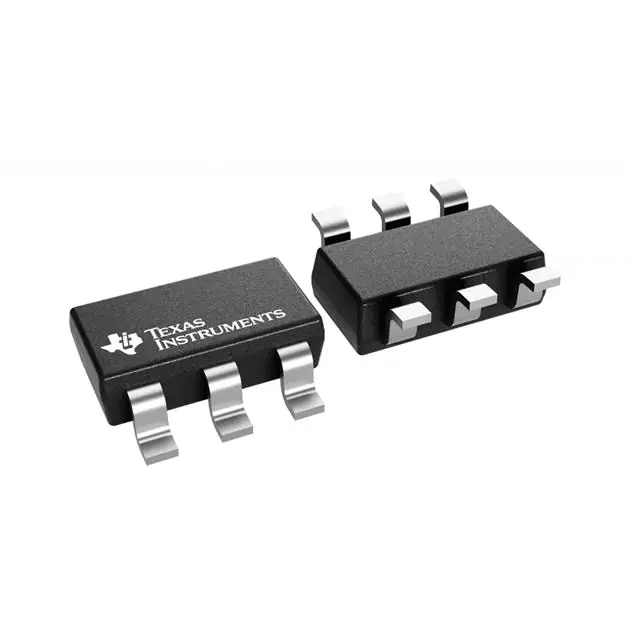

| Part Number | LMR14006XDDCR | LMR16006XDDCR | LMR14006YDDCR | LMR14006XDDCT |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V | 4V |
| Voltage - Input (Max) | 40V | 60V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 0.765V | 0.765V | 0.765V | 0.765V |
| Voltage - Output (Max) | 38.4V | 55V | 38.4V | 38.4V |
| Current - Output | 600mA | 600mA | 600mA | 600mA |
| Frequency - Switching | 1.1MHz | 700kHz | 2.1MHz | 1.1MHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN | SOT-23-THIN | SOT-23-THIN | SOT-23-THIN |
