| Part Number | LMK04131SQE/NOPB | LMK04133SQE/NOPB | LMK04131SQX/NOPB | LMK04101SQE/NOPB | LMK04111SQE/NOPB | LMK04131SQ/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL |
| Output | LVCMOS, LVDS, 2VPECL, LVPECL | LVCMOS, LVDS, 2VPECL, LVPECL | LVCMOS, LVDS, 2VPECL, LVPECL | LVCMOS, 2VPECL, LVPECL | 2VPECL, LVPECL | LVCMOS, LVDS, 2VPECL, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:6 | 2:6 | 2:6 | 2:7 | 2:5 | 2:6 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Frequency - Max | 1.08GHz | 1.08GHz | 1.08GHz | 1.08GHz | 1.08GHz | 1.08GHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

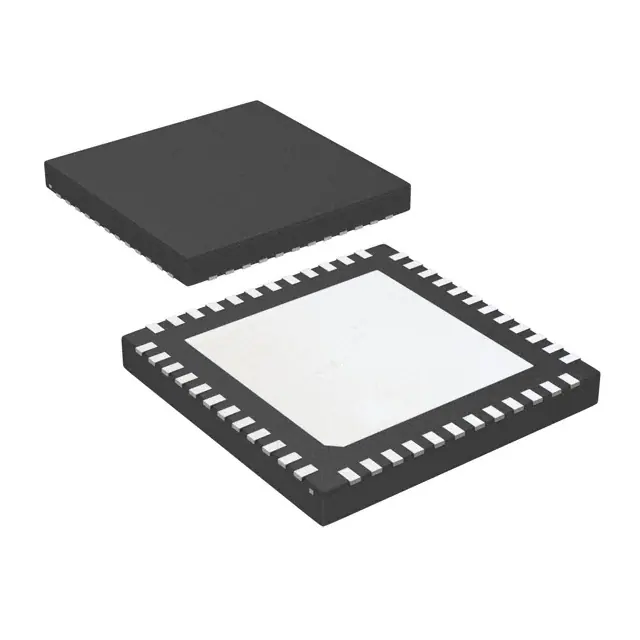

| Package / Case | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) |
