| Part Number | LMK04000BISQ/NOPB | LMK04002BISQ/NOPB | LMK04000BISQX/NOPB | LMK04001BISQ/NOPB | LMK04010BISQ/NOPB | LMK04000BISQE/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Clock Conditioner | Clock Conditioner | Clock Conditioner | Clock Conditioner | Clock Conditioner | Clock Conditioner |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL | LVCMOS, LVDS, LVPECL |
| Output | LVCMOS, 2VPECL, LVPECL | LVCMOS, 2VPECL, LVPECL | LVCMOS, 2VPECL, LVPECL | LVCMOS, 2VPECL, LVPECL | 2VPECL, LVPECL | LVCMOS, 2VPECL, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 3:7 | 2:7 | 2:7 | 2:7 | 2:5 | 2:7 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Frequency - Max | 1.296GHz | 1.75GHz | 1.296GHz | 1.57GHz | 1.296GHz | 1.296GHz |
| Divider/Multiplier | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Voltage - Supply | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

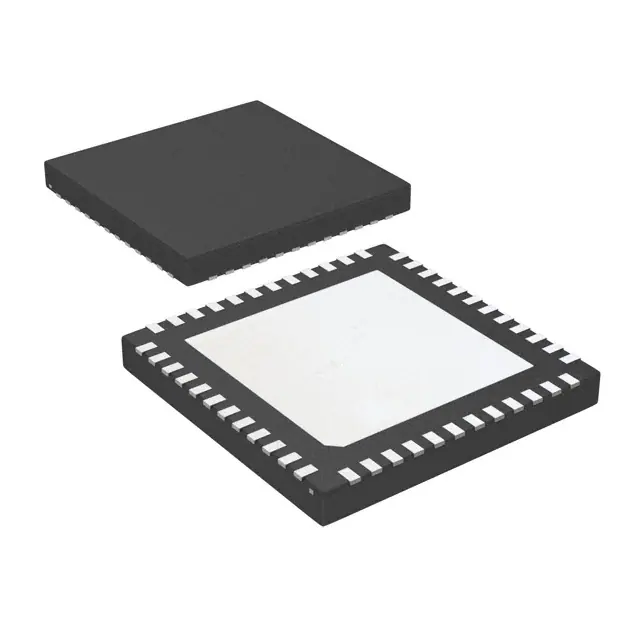

| Package / Case | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) | 48-WQFN (7x7) |
