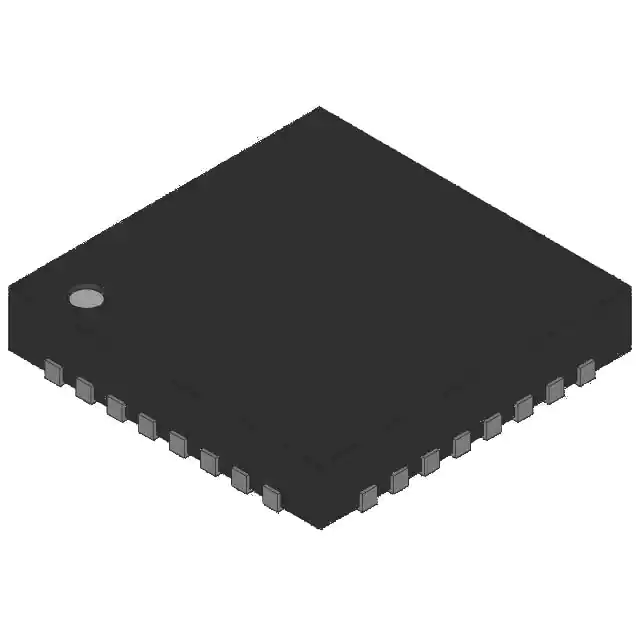

| Part Number | LMH7324SQX/NOPB | LMH7322SQX/NOPB | LMH7324SQ/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Active | Obsolete | Active |
| Type | General Purpose | General Purpose | General Purpose |
| Number of Elements | 4 | 2 | 4 |
| Output Type | Complementary, Differential, RSPECL, LVDS | Differential, LVDS, RSPECL | Differential, LVDS, RSPECL |
| Voltage - Supply, Single/Dual (±) | 5V ~ 12V, ±2.5V ~ 6V | 2.7V ~ 12V, ±1.35V ~ 6V | 5V ~ 12V, ±2.5V ~ 6V |
| Voltage - Input Offset (Max) | 9.5mV @ 5V | 8mV @ 5V | 9.5mV @ 5V |
| Current - Input Bias (Max) | 5µA @ 5V | 5µA @ 5V | 5µA @ 5V |
| Current - Output (Typ) | - | 25mA | - |
| Current - Quiescent (Max) | 17mA | 10mA | 7.5mA |
| CMRR, PSRR (Typ) | 83dB, 75dB | 80dB CMRR, 80dB PSRR | 80dB CMRR, 75dB PSRR |
| Propagation Delay (Max) | 0.74ns | 0.783ns | 0.74ns |
| Hysteresis | 20.8mV | 75mV | 20.8mV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 32-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 32-WQFN (5x5) | 24-WQFN (4x4) | 32-WQFN (5x5) |
