| Part Number | LMH7322SQX/NOPB | LMH7324SQX/NOPB | LMH7322SQ/NOPB | LMH7322SQE/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active |
| Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Elements | 2 | 4 | 2 | 2 |
| Output Type | Differential, LVDS, RSPECL | Complementary, Differential, RSPECL, LVDS | Differential, LVDS, RSPECL | Differential, LVDS, RSPECL |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 12V, ±1.35V ~ 6V | 5V ~ 12V, ±2.5V ~ 6V | 2.7V ~ 12V, ±1.35V ~ 6V | 2.7V ~ 12V, ±1.35V ~ 6V |
| Voltage - Input Offset (Max) | 8mV @ 5V | 9.5mV @ 5V | 8mV @ 5V | 8mV @ 5V |
| Current - Input Bias (Max) | 5µA @ 5V | 5µA @ 5V | 5µA @ 5V | 5µA @ 5V |
| Current - Output (Typ) | 25mA | - | 25mA | 25mA |
| Current - Quiescent (Max) | 10mA | 17mA | 10mA | 10mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR | 83dB, 75dB | 80dB CMRR, 80dB PSRR | 80dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 0.783ns | 0.74ns | 0.783ns | 0.783ns |
| Hysteresis | 75mV | 20.8mV | 75mV | 75mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C |

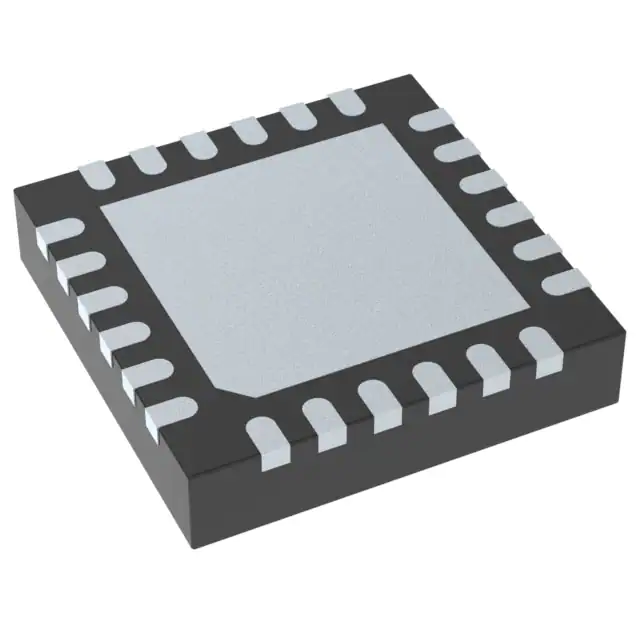

| Package / Case | 24-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 24-WQFN (4x4) | 32-WQFN (5x5) | 24-WQFN (4x4) | 24-WQFN (4x4) |
