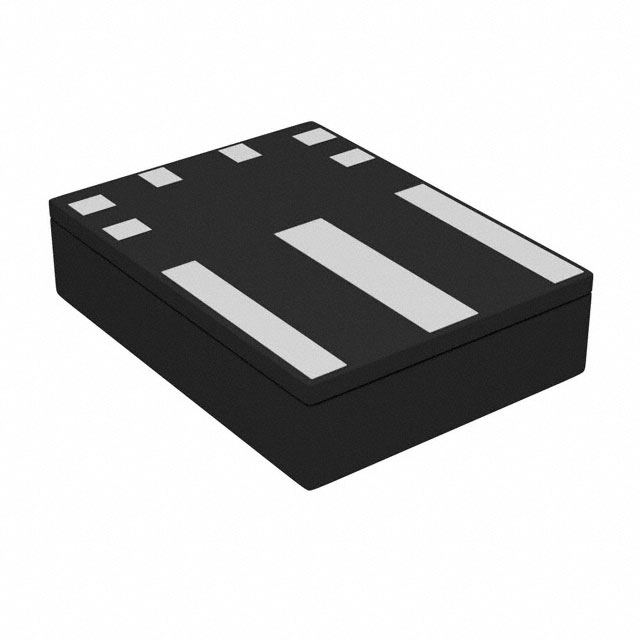

| Part Number | LMG5200MOFT | LMG5200MOFR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | NMOS | NMOS |
| Rds On (Typ) | 15mOhm LS, 15mOhm HS | 15mOhm LS, 15mOhm HS |
| Current - Output / Channel | 10A | 10A |
| Current - Peak Output | - | - |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Load | 80V | 80V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | UVLO | UVLO |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 9-QFN | 9-QFN |
| Supplier Device Package | 9-QFN (8x6) | 9-QFN (8x6) |
