Please send RFQ , we will respond immediately.

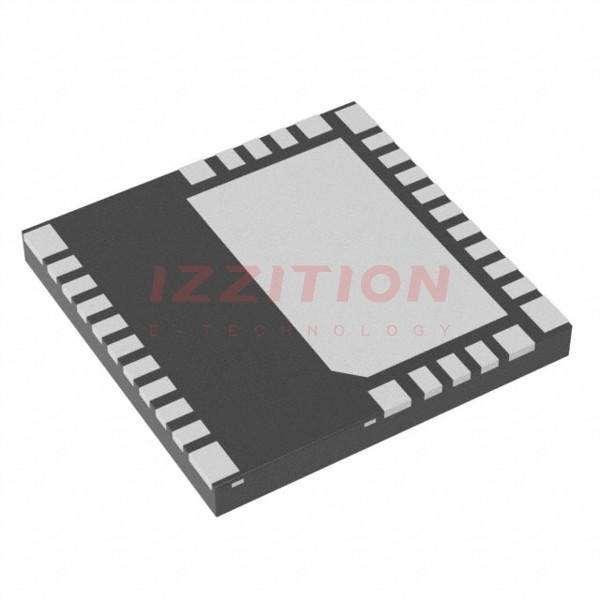

| Part Number | LMG3411R150RWHR | LMG3411R150RWHT | LMG3410R150RWHR | LMG3411R050RWHR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Switch Type | Load Switch | Load Switch | Load Switch | Load Switch |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | P-Channel |
| Interface | Logic, PWM | Logic, PWM | Logic, PWM | Logic, PWM |
| Voltage - Load | 480V (Max) | 480V (Max) | 480V (Max) | 480V (Max) |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 18V | 9.5V ~ 18V | 9.5V ~ 18V | 9.5V ~ 18V |
| Current - Output (Max) | 6A | 6A | 6A | 12A |
| Rds On (Typ) | 150mOhm | 150mOhm | 150mOhm | 57mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Bootstrap Circuit, 5V Regulated Output | Bootstrap Circuit, 5V Regulated Output | Bootstrap Circuit, 5V Regulated Output | Bootstrap Circuit, 5V Regulated Output |
| Fault Protection | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 32-VQFN (8x8) | 32-VQFN (8x8) | 32-VQFN (8x8) | 32-VQFN (8x8) |
| Package / Case | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad | 32-VQFN Exposed Pad |
