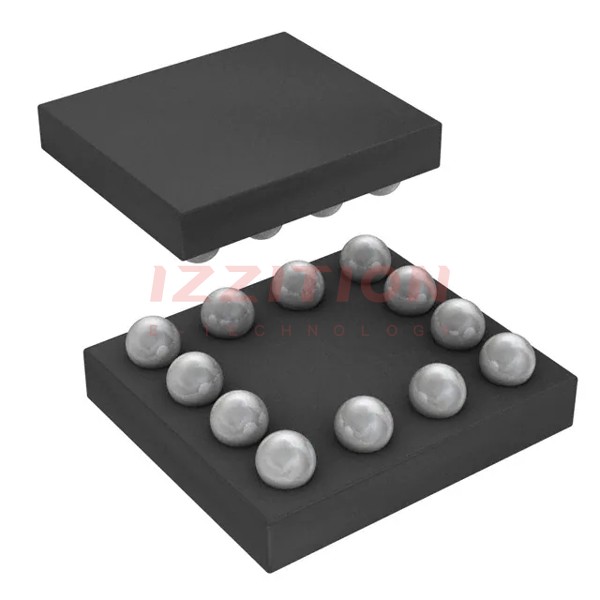

| Part Number | LMG1205YFXR | LMG1205YFXT |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent |
| Number of Drivers | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | - | 1.76V, 1.89V |
| Current - Peak Output (Source, Sink) | 1.2A, 5A | 1.2A, 5A |
| Input Type | TTL | TTL |
| High Side Voltage - Max (Bootstrap) | 100 V | 100 V |
| Rise / Fall Time (Typ) | 7ns, 3.5ns | 7ns, 3.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 12-WFBGA, DSBGA | 12-WFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA | 12-DSBGA |
