| Part Number | LM76003QRNPTQ1 | LM76002QRNPTQ1 | LM76003QRNPRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V |
| Voltage - Output (Max) | 57V | 57V | 57V |
| Current - Output | 3.5A | 2.5A | 3.5A |
| Frequency - Switching | 300kHz ~ 2.2MHz | 300kHz ~ 2.2MHz | 300kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

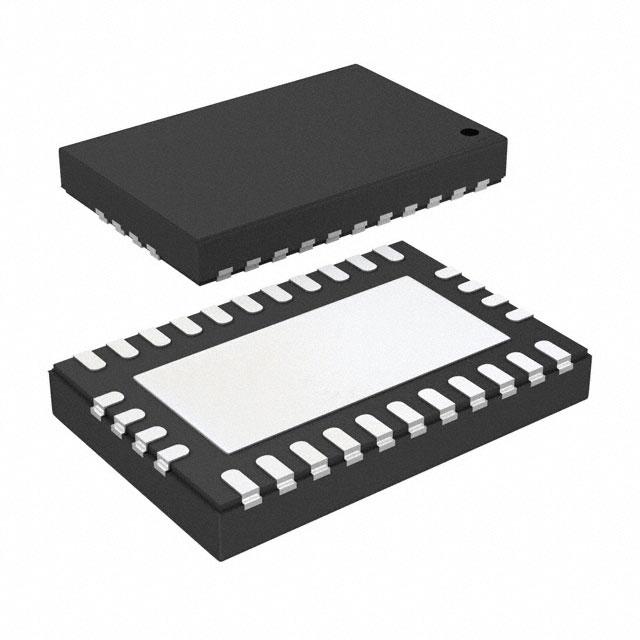

| Package / Case | 30-WFQFN Exposed Pad | 30-WFQFN Exposed Pad | 30-WFQFN Exposed Pad |
| Supplier Device Package | 30-WQFN (6x4) | 30-WQFN (6x4) | 30-WQFN (6x4) |
