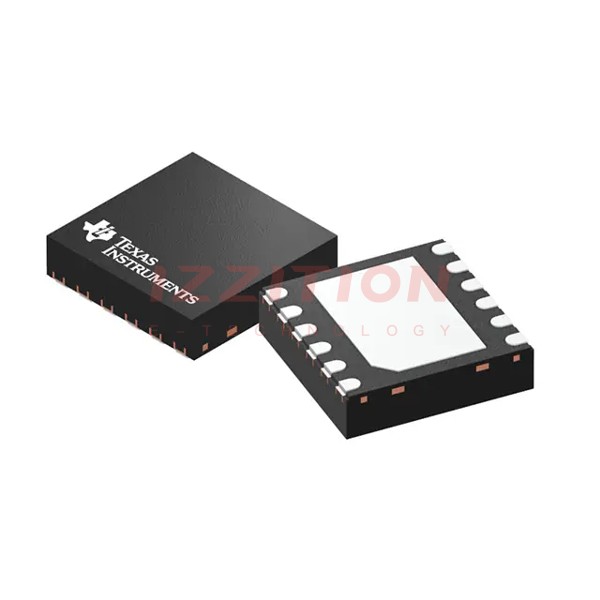

| Part Number | LM74800QDRRRQ1 | LM74801QDRRRQ1 | LM74810QDRRRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Type | N+1 ORing Controller | N+1 ORing Controller | N+1 ORing Controller |
| FET Type | N-Channel | N-Channel | N-Channel |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Internal Switch(s) | No | No | Yes |
| Delay Time - ON | 2.6 µs | 2.6 µs | 850 ns |
| Delay Time - OFF | 500 ns | 500 ns | 500 ns |
| Current - Output (Max) | 5A | 5A | - |
| Current - Supply | 413 µA | 413 µA | 408 µA |
| Voltage - Supply | 3V ~ 65V | 3V ~ 65V | 3V ~ 65V |
| Applications | Automotive, Redundant Power Supplies | Automotive, Redundant Power Supplies | Automotive, Redundant Power Supplies |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x3) | 12-WSON (3x3) | 12-WSON (3x3) |
