Please send RFQ , we will respond immediately.

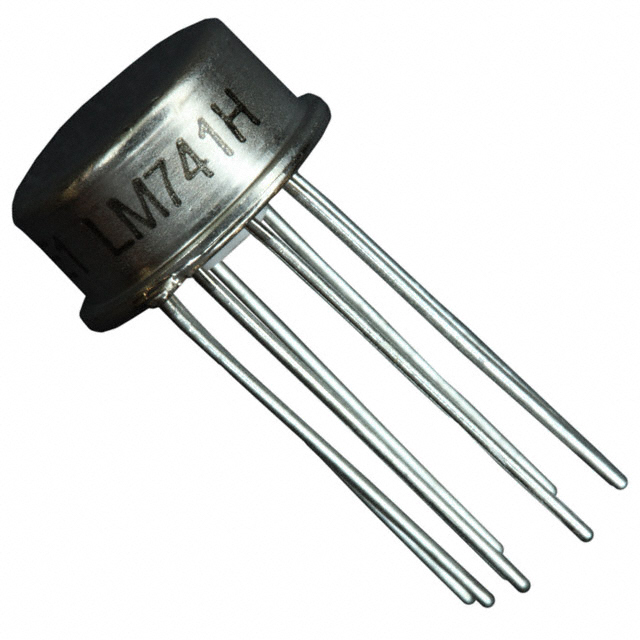

| Part Number | LM741H/NOPB | LM741CH/NOPB |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Amplifier Type | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 |
| Output Type | - | - |
| Slew Rate | 0.5V/µs | 0.5V/µs |
| Gain Bandwidth Product | 1.5 MHz | 1.5 MHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 80 nA | 80 nA |
| Voltage - Input Offset | 1 mV | 2 mV |
| Current - Supply | 1.7mA | 1.7mA |
| Current - Output / Channel | 25 mA | 25 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V |
| Voltage - Supply Span (Max) | 44 V | 36 V |
| Operating Temperature | -55°C ~ 125°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 |
