LM63625DQPWPRQ1
  • Share:

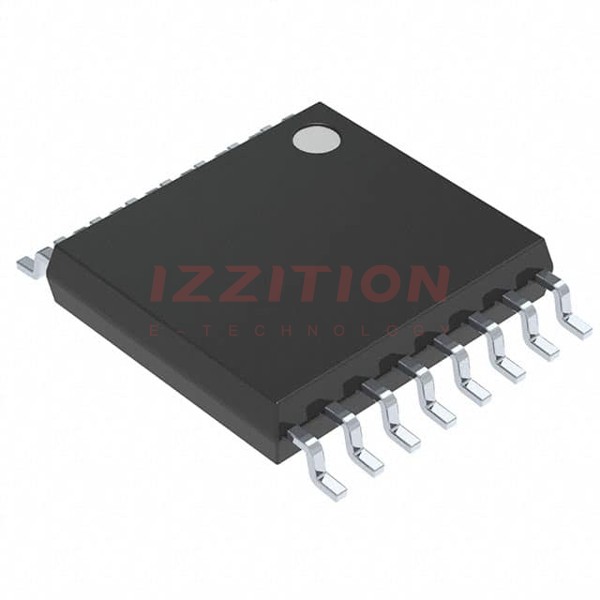

Texas Instruments LM63625DQPWPRQ1

Manufacturer No:
LM63625DQPWPRQ1
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
LM63625DQPWPRQ1 Datasheet
ECAD Model:
-
Description:
IC POWER MANAGEMENT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):3.5V
Voltage - Input (Max):36V
Voltage - Output (Min/Fixed):1V
Voltage - Output (Max):20V
Current - Output:2.5A
Frequency - Switching:400kHz, 2.1MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:16-HTSSOP
0 Remaining View Similar

In Stock

$4.01
77

Please send RFQ , we will respond immediately.

Similar Products

Part Number LM63625DQPWPRQ1 LM63635DQPWPRQ1   LM63615DQPWPRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active
Function Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive
Topology Buck Buck Buck
Output Type Adjustable Adjustable Adjustable
Number of Outputs 1 1 1
Voltage - Input (Min) 3.5V 3.5V 3.5V
Voltage - Input (Max) 36V 32V 36V
Voltage - Output (Min/Fixed) 1V 1V 1V
Voltage - Output (Max) 20V 20V 20V
Current - Output 2.5A 3.25A 1.5A
Frequency - Switching 400kHz, 2.1MHz 250kHz ~ 2.2MHz 400kHz, 2.1MHz
Synchronous Rectifier Yes Yes Yes
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 125°C -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 16-PowerTSSOP (0.173", 4.40mm Width) 16-PowerTSSOP (0.173", 4.40mm Width) 16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-HTSSOP 16-HTSSOP 16-HTSSOP
