Please send RFQ , we will respond immediately.
| Part Number | LM63615DQPWPRQ1 | LM63625DQPWPRQ1 | LM63635DQPWPRQ1 | LM63610DQPWPRQ1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 36V | 36V | 32V | 36V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 20V | 20V | 20V | 20V |
| Current - Output | 1.5A | 2.5A | 3.25A | 1A |
| Frequency - Switching | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 250kHz ~ 2.2MHz | 1.85MHz ~ 2.35MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

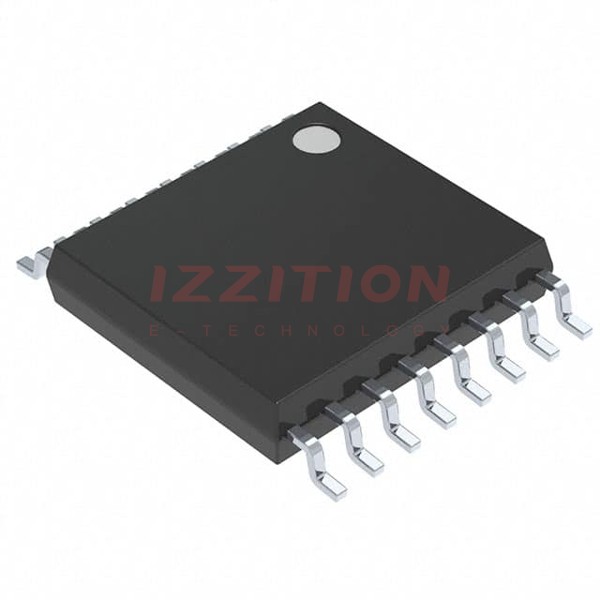

| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP |
