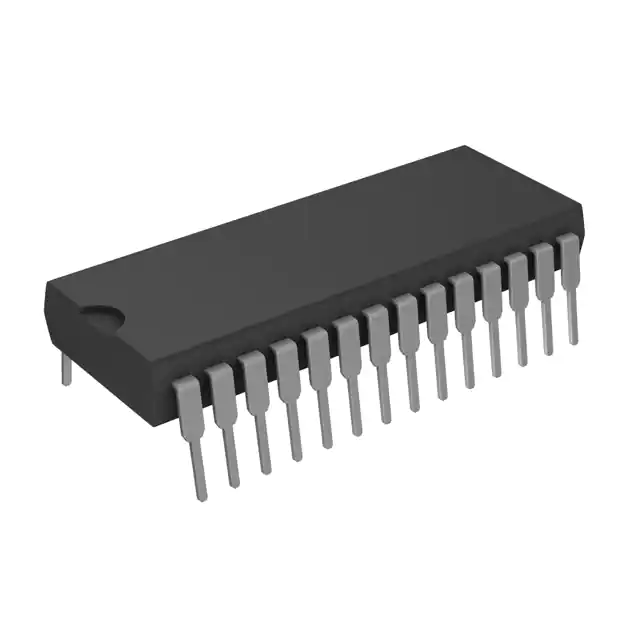

| Part Number | LM629N-8/NOPB | LM628N-8/NOPB | LM629M-8/NOPB | LM629N-6/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) Servo, Brushed DC Servo | Brushless DC (BLDC) Servo, Brushed DC Servo | Brushless DC (BLDC) Servo, Brushed DC Servo | Brushless DC (BLDC) Servo, Brushed DC Servo |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (4) | Pre-Driver - Half Bridge (4) | Pre-Driver - Half Bridge (4) | Pre-Driver - Half Bridge (4) |
| Interface | Parallel | Parallel | Parallel | Parallel |
| Technology | - | - | - | - |
| Step Resolution | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 24-SOIC (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP | 28-PDIP | 24-SOIC | 28-DIP |
