| Part Number | LM53635AQRNLRQ1 | LM53635LQRNLRQ1 | LM53635MQRNLRQ1 | LM53635NQRNLRQ1 | LM53635AQRNLTQ1 | LM53625AQRNLRQ1 | LM536353QRNLRQ1 | LM536355QRNLRQ1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Fixed | Fixed | Adjustable | Adjustable | - | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.9V | 3.9V | 3.9V | 3.9V | 3.9V | 3.9V | 3.9V | 3.9V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 5V | 3.3V | 3.3V | 3.3V | - | 5V |
| Voltage - Output (Max) | 10V | 10V | - | - | 10V | 10V | - | - |
| Current - Output | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A | 2.5A | 3.5A | 3.5A |
| Frequency - Switching | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

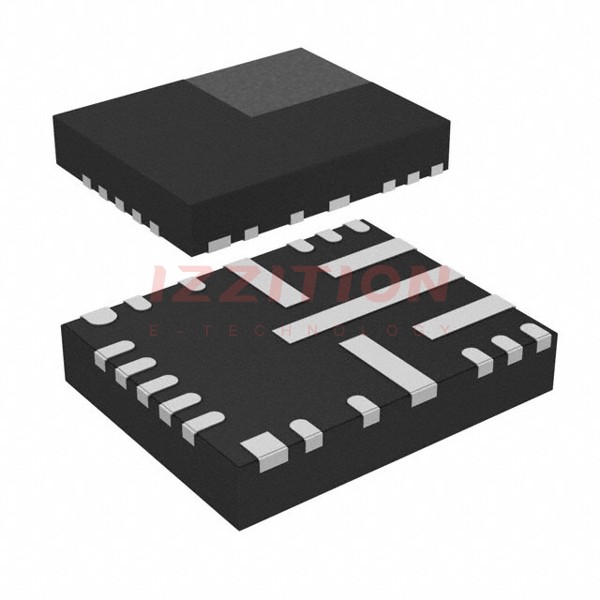

| Package / Case | 22-VFQFN | 22-VFQFN | 22-VFQFN | 22-VFQFN | 22-VFQFN | 22-VFQFN | 22-VFQFN | 22-VFQFN |
| Supplier Device Package | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) | 22-VQFN-HR (5x4) |
