| Part Number | LM53600MQUDSXRQ1 | LM53601MQUDSXRQ1 | LM53600MQDSXRQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.55V | 3.55V | 3.8V |
| Voltage - Input (Max) | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | 6V | 6V | 6V |
| Current - Output | 650mA | 1A | 650mA |
| Frequency - Switching | 2.1MHz | 2.1MHz | 2.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

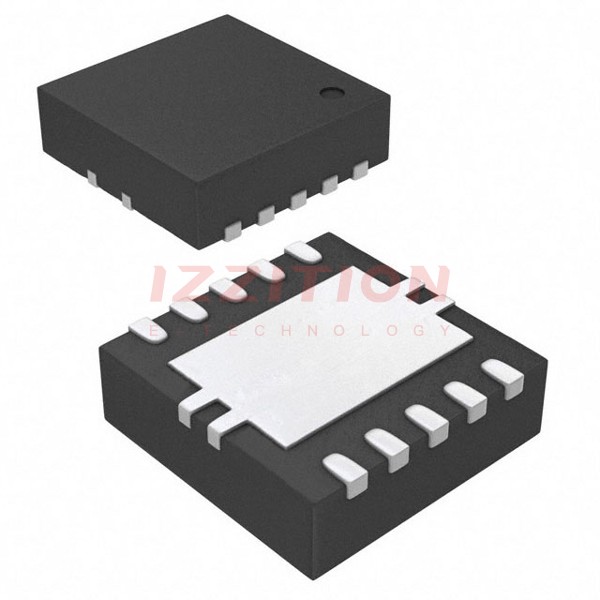

| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) | 10-WSON (3x3) | 10-WSON (3x3) |
