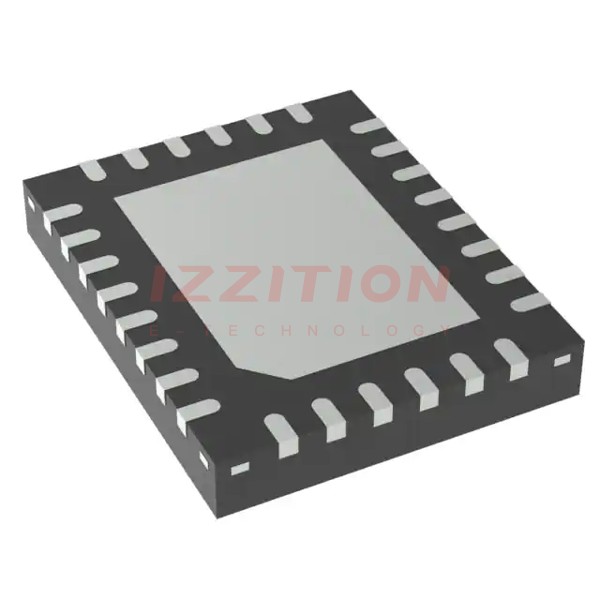

| Part Number | LM5176RHFR | LM5176RHFT | LM5175RHFR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost |
| Number of Outputs | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 55V | 4.2V ~ 55V | 3.5V ~ 42V |
| Frequency - Switching | 100kHz ~ 600kHz | 100kHz ~ 600kHz | 100kHz ~ 600kHz |
| Duty Cycle (Max) | - | 50% | - |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN (5x4) | 28-VQFN (5x4) | 28-VQFN (5x4) |
