Please send RFQ , we will respond immediately.
| Part Number | LM5160DNTJ | LM5160DNTR | LM5160DNTT |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Buck, Flyback | Buck, Flyback | Buck, Flyback |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 65V | 65V | 65V |
| Voltage - Output (Min/Fixed) | 2V | 2V | 2V |
| Voltage - Output (Max) | 60V | 60V | 60V |
| Current - Output | 2A | 2A | 2A |
| Frequency - Switching | Adj to 1MHz | Adj to 1MHz | Adj to 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

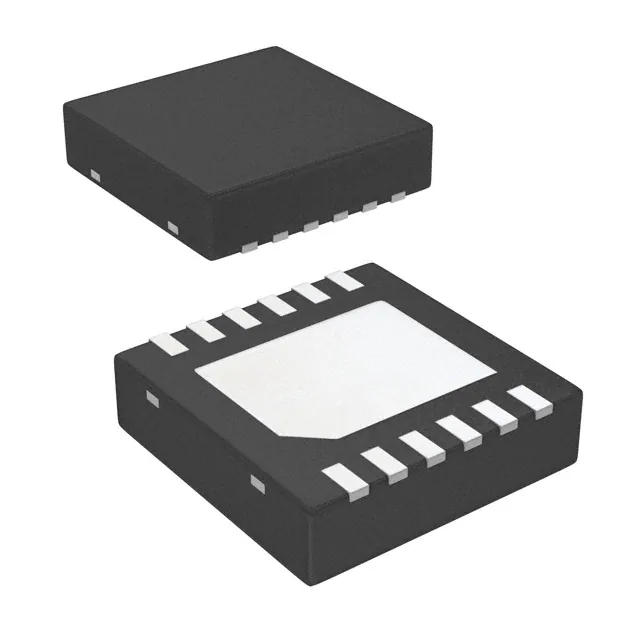

| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (4x4) | 12-WSON (4x4) | 12-WSON (4x4) |
