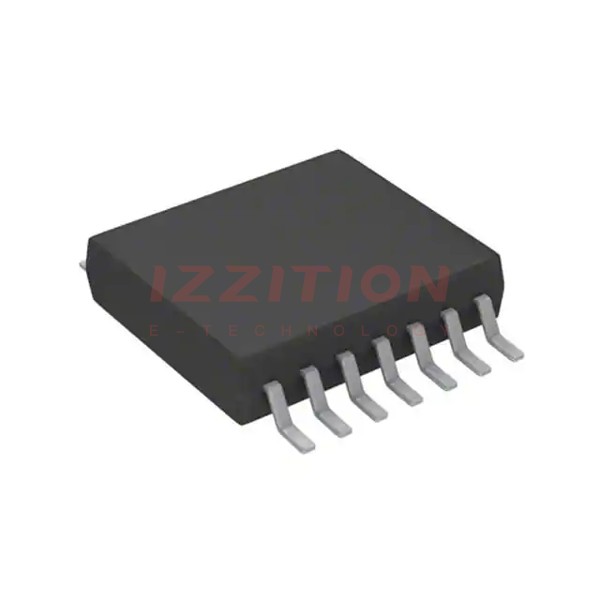

| Part Number | LM5156HPWPR | LM51561HPWPR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Boost, Flyback, SEPIC | Boost, Flyback, SEPIC |
| Number of Outputs | 1 | 1 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 60V | 2.97V ~ 60V |
| Frequency - Switching | 100kHz ~ 2.2MHz | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | 93% | 93% |
| Synchronous Rectifier | No | No |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP | 14-HTSSOP |
