Please send RFQ , we will respond immediately.
| Part Number | LM5150QRUMRQ1 | LM5150QURUMRQ1 | LM5150QRUMTQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost |
| Number of Outputs | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.5V ~ 42V | 1.5V ~ 42V | 1.5V ~ 42V |
| Frequency - Switching | 220kHz ~ 2.3MHz | 220kHz ~ 2.3MHz | 220kHz ~ 2.3MHz |
| Duty Cycle (Max) | 91.5% | 87% | 91.5% |
| Synchronous Rectifier | No | No | No |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Enable, Current Limit | Current Limit, Enable, Frequency Control | Enable, Current Limit |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

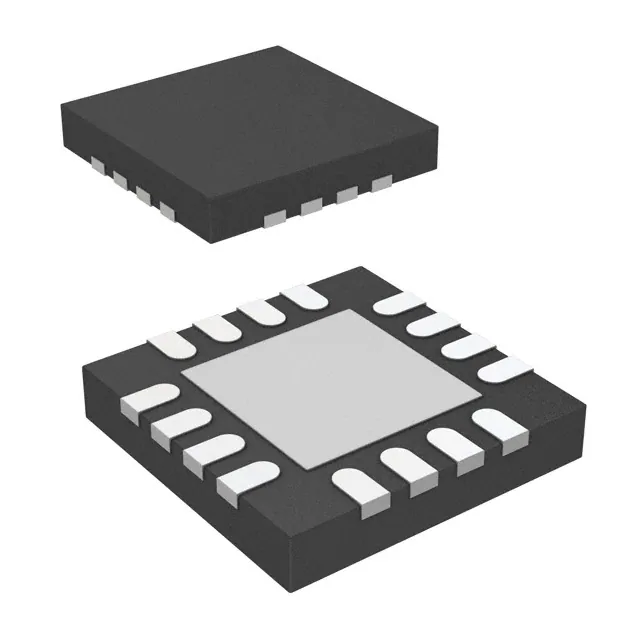

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) | 16-WQFN (4x4) | 16-WQFN (4x4) |
