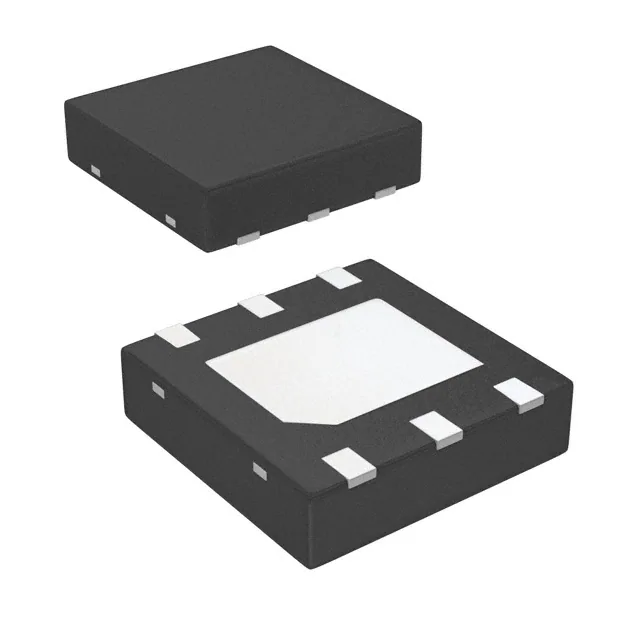

| Part Number | LM5114ASD/NOPB | LM5114BSD/NOPB | LM5114ASDX/NOPB | LM5134ASD/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 12.6V | 4V ~ 12.6V | 4V ~ 12.6V | 4V ~ 12.6V |
| Logic Voltage - VIL, VIH | - | 0.8V, 2.4V | - | - |
| Current - Peak Output (Source, Sink) | 1.3A, 7.6A | 1.3A, 7.6A | 1.3A, 7.6A | 4.5A, 7.6A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - |
| Rise / Fall Time (Typ) | 82ns, 12.5ns | 82ns, 12.5ns | 82ns, 12.5ns | 3ns, 2ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) | 6-WSON (3x3) | 6-WSON (3x3) | 6-WSON (3x3) |
