Please send RFQ , we will respond immediately.
| Part Number | LM5109BSD | LM5109SD | LM5109BSDX | LM5101BSD | LM5109ASD |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V | 9V ~ 14V | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 2.3V, - | 0.8V, 2.2 V |
| Current - Peak Output (Source, Sink) | 1A, 1A | 1A, 1A | 1A, 1A | 2A, 2A | 1A, 1A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V | 118 V | 108 V | 118 V | 108 V |
| Rise / Fall Time (Typ) | 15ns, 15ns | 15ns, 15ns | 15ns, 15ns | 570ns, 430ns | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

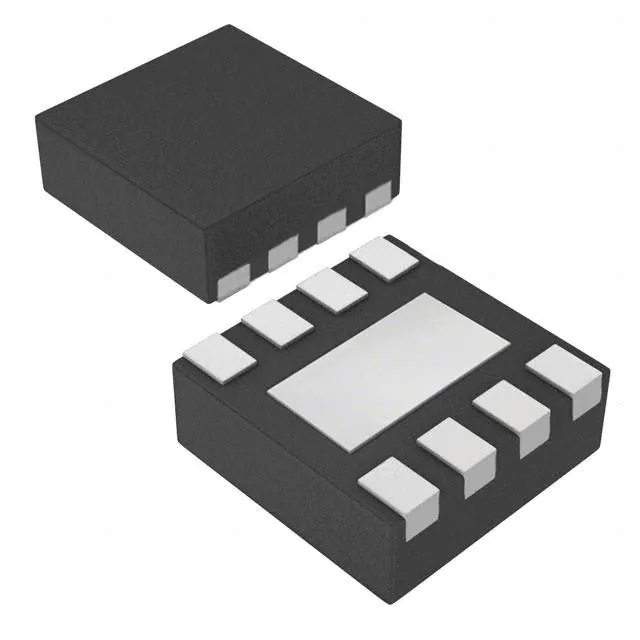

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 10-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 10-WSON (4x4) | 8-WSON (4x4) |
