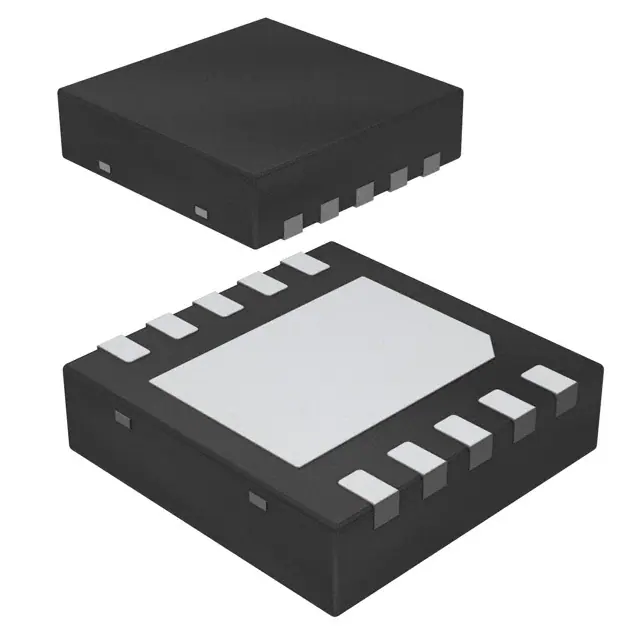

| Part Number | LM5104SDX/NOPB | LM5105SDX/NOPB | LM5106SDX/NOPB | LM5107SDX/NOPB | LM5102SDX/NOPB | LM5104SD/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous | Synchronous | Independent | Independent | Synchronous |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | IGBT, N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V | 9V ~ 14V | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.6A, 1.6A | 1.8A, 1.8A | 1.2A, 1.8A | 1.3A, 1.4A | 1.6A, 1.6A | 1.6A, 1.6A |
| Input Type | Inverting, Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V | 118 V | 118 V | 118 V | 118 V | 118 V |
| Rise / Fall Time (Typ) | 600ns, 600ns | 15ns, 15ns | 15ns, 10ns | 15ns, 15ns | 600ns, 600ns | 600ns, 600ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad | 8-WDFN Exposed Pad | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) | 10-WSON (4x4) | 10-WSON (4x4) | 8-WSON (4x4) | 10-WSON (4x4) | 10-WSON (4x4) |
