Please send RFQ , we will respond immediately.
| Part Number | LM5046SQX/NOPB | LM5045SQX/NOPB | LM5046SQ/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No |
| Voltage - Breakdown | - | - | - |
| Topology | Full-Bridge | Full-Bridge | Full-Bridge |
| Voltage - Start Up | - | - | - |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 100V | 14V ~ 100V | 14V ~ 100V |
| Duty Cycle | - | - | - |
| Frequency - Switching | Up to 2MHz | Up to 2MHz | Up to 2MHz |
| Power (Watts) | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start, Sync | Frequency Control, Soft Start, Sync | Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

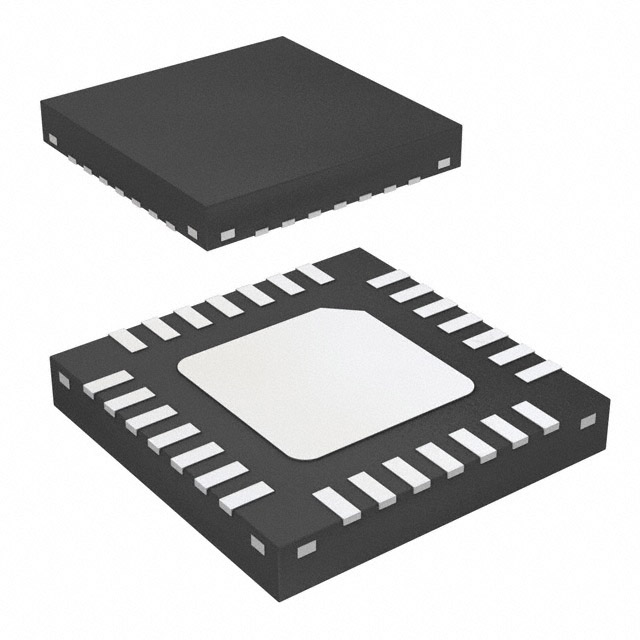

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (5x5) | 28-WQFN (5x5) | 28-WQFN (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
