Please send RFQ , we will respond immediately.

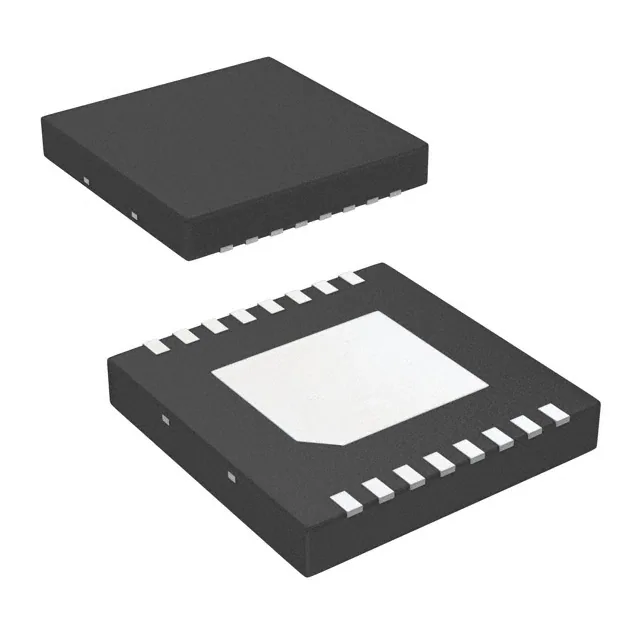

| Part Number | LM5041SDX/NOPB | LM5031SDX/NOPB | LM5041ASDX/NOPB | LM5041SD/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Discontinued at Digi-Key | Active |
| Output Type | Transistor Driver | - | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | - | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | - | Positive | Positive |
| Topology | Half-Bridge, Push-Pull | - | Half-Bridge, Push-Pull | Half-Bridge, Push-Pull |
| Number of Outputs | 1 | - | 1 | 1 |
| Output Phases | 1 | - | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 15V ~ 90V | - | 15V ~ 90V | 15V ~ 90V |
| Frequency - Switching | 200kHz, 600kHz | - | 200kHz, 600kHz | 200kHz, 600kHz |
| Duty Cycle (Max) | - | - | - | - |
| Synchronous Rectifier | Yes | - | Yes | Yes |
| Clock Sync | Yes | - | Yes | Yes |
| Serial Interfaces | - | - | - | - |
| Control Features | Dead Time Control, Frequency Control, Soft Start | - | Dead Time Control, Frequency Control, Soft Start | Dead Time Control, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad | 10-WDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) | 10-WSON (4x4) | 16-WSON (5x5) | 16-WSON (5x5) |
