| Part Number | LM5036RJBT | LM5036RJBR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Type | PWM | PWM |
| Function | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Half-Bridge | Half-Bridge |
| Number of Outputs | 2 | 2 |
| Output Phases | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 8.1V | 7.5V ~ 8.1V |
| Frequency - Switching | 2MHz | 2MHz |
| Duty Cycle (Max) | 50% | 50% |
| Synchronous Rectifier | Yes | Yes |
| Clock Sync | Yes | Yes |
| Serial Interfaces | - | - |
| Control Features | Current Limit, Frequency Control, Ramp | Current Limit, Frequency Control, Ramp |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

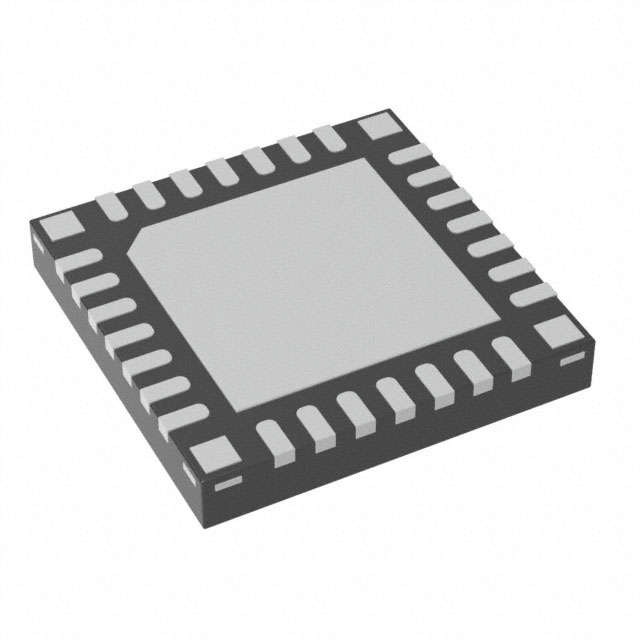

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (5x5) | 28-WQFN (5x5) |
