Please send RFQ , we will respond immediately.
| Part Number | LM5007SDX/NOPB | LM5017SDX/NOPB | LM5009SDX/NOPB | LM5008SDX/NOPB | LM5001SDX/NOPB | LM5002SDX/NOPB | LM5007SD/NOPB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Discontinued at Digi-Key | Obsolete | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive, Isolation Capable | Positive, Isolation Capable | Positive |
| Topology | Buck | Buck | Buck | Buck | Boost, Flyback, Forward Converter, SEPIC | Boost, Flyback, Forward Converter, SEPIC | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 9V | 7.5V | 9.5V | 9.5V | 3.1V | 3.1V | 9V |
| Voltage - Input (Max) | 75V | 100V | 95V | 95V | 75V | 75V | 75V |
| Voltage - Output (Min/Fixed) | 2.5V | 1.225V | 2.5V | 2.5V | 3.1V | 3.1V | 2.5V |
| Voltage - Output (Max) | 73V | 90V | 85V | 75V | 76V (Switch) | 76V (Switch) | 73V |
| Current - Output | 500mA | 600mA | 150mA | 350mA | 800mA (Switch) | 400mA (Switch) | 500mA |
| Frequency - Switching | - | Adj to 1MHz | - | 50kHz ~ 600kHz | 50kHz ~ 1.5MHz | 50kHz ~ 1.5MHz | - |
| Synchronous Rectifier | No | Yes | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

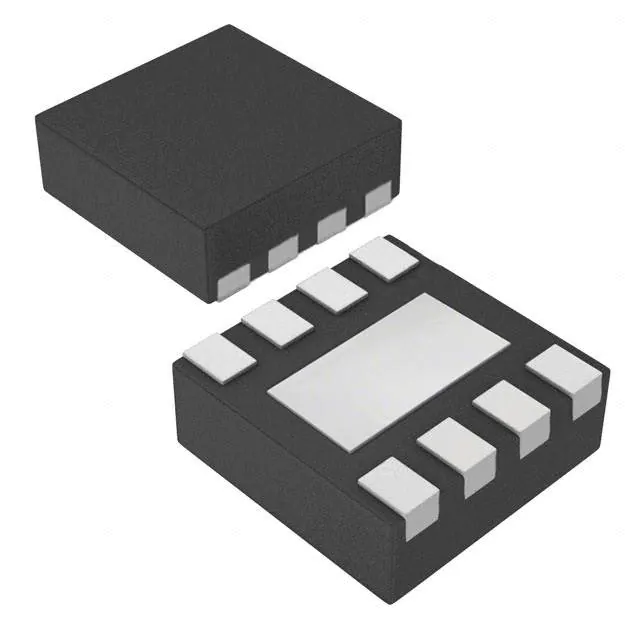

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) |
