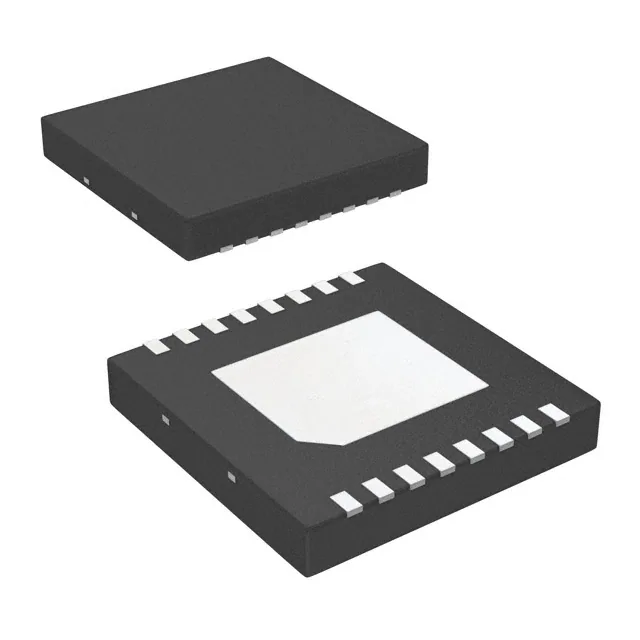

| Part Number | LM5000SDX-3 | LM5000SDX-6 | LM5000SD-3 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.1V | 3.1V | 3.1V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.1V | 3.1V | 3.1V |
| Voltage - Output (Max) | 80V (Switch) | 80V (Switch) | 80V (Switch) |
| Current - Output | 1.35A (Switch) | 1.35A (Switch) | 1.35A (Switch) |
| Frequency - Switching | 300kHz, 700kHz | 600kHz, 1.3MHz | 300kHz, 700kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) | 16-WSON (5x5) | 16-WSON (5x5) |
