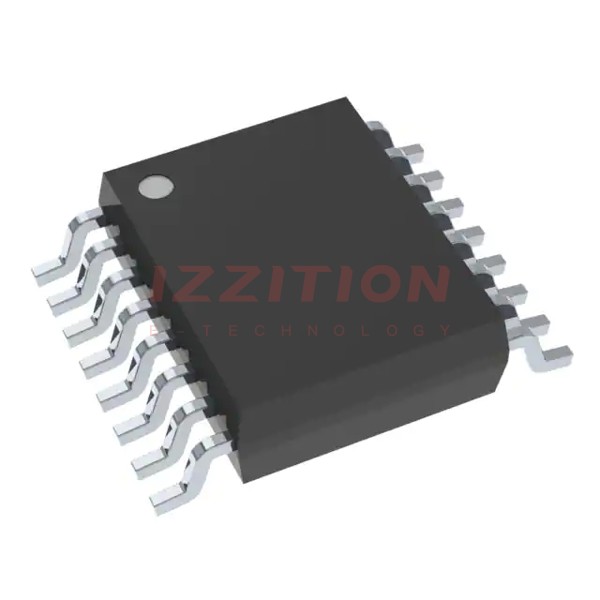

| Part Number | LM46001AQPWPTQ1 | LM46001QPWPTQ1 | LM46002AQPWPTQ1 | LM46000AQPWPTQ1 | LM46001AQPWPRQ1 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Not For New Designs | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 28V | 28V | 28V | 28V | 28V |
| Current - Output | 1A | 1A | 2A | 500mA | 1A |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP | 16-HTSSOP |
