| Part Number | LM4050CIM3X-2.5 | LM4050BIM3X-2.5 | LM4050CEM3X-2.5 | LM4050CIM3-2.5 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Reference Type | Shunt | Shunt | Shunt | Shunt |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 15 mA | 15 mA | 15 mA | 15 mA |
| Tolerance | ±0.5% | ±0.2% | ±0.5% | ±0.5% |
| Temperature Coefficient | 50ppm/°C | 50ppm/°C | 50ppm/°C | 50ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - | - |
| Noise - 10Hz to 10kHz | 41µVrms | 41µVrms | 41µVrms | 41µVrms |
| Voltage - Input | - | - | - | - |
| Current - Supply | - | - | - | - |
| Current - Cathode | 65 µA | 65 µA | 65 µA | 65 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

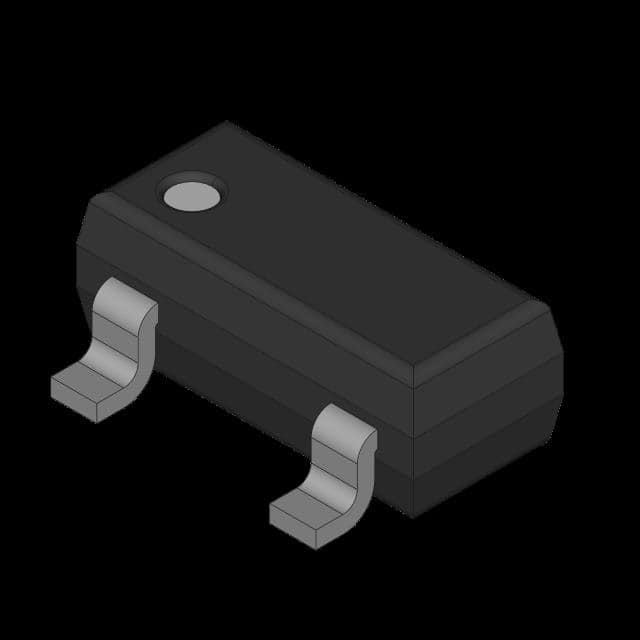

| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 | SOT-23-3 | SOT-23-3 | SOT-23-3 |
