Please send RFQ , we will respond immediately.

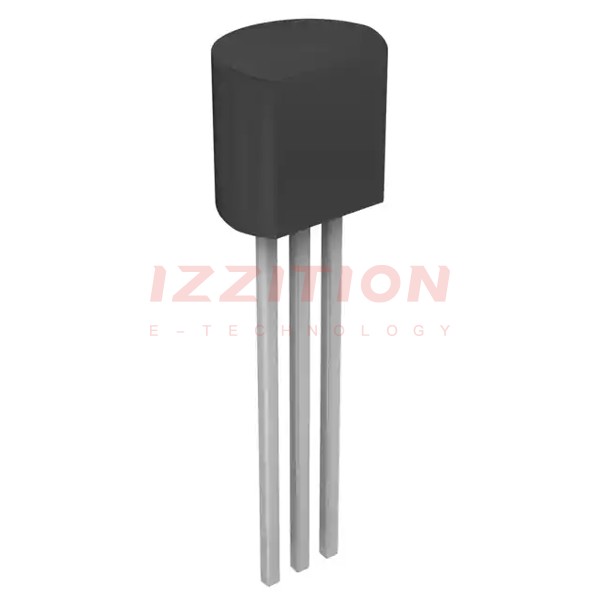

| Part Number | LM4040DIZ-3.0/NOPB | LM4040DIZ-5.0/NOPB | LM4040EIZ-3.0/NOPB | LM4040DIZ-2.0/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Reference Type | Shunt | Shunt | Shunt | Shunt |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 3V | 5V | 3V | 2.048V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 15 mA | 15 mA | 15 mA | 15 mA |
| Tolerance | ±1% | ±1% | ±2% | ±1% |
| Temperature Coefficient | 150ppm/°C | 150ppm/°C | 150ppm/°C | 150ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - | - |
| Noise - 10Hz to 10kHz | 35µVrms | 80µVrms | 35µVrms | 35µVrms |
| Voltage - Input | - | - | - | - |
| Current - Supply | - | - | - | - |
| Current - Cathode | 70 µA | 85 µA | 70 µA | 70 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
