| Part Number | LM3S815-EGZ50-C2 | LM3S815-IGZ50-C2 | LM3S815-EGZ50-C2T | LM3S817-EGZ50-C2 | LM3S818-EGZ50-C2 | LM3S811-EGZ50-C2 | LM3S812-EGZ50-C2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz |
| Connectivity | I²C, Microwire, SPI, SSI, UART/USART | I²C, Microwire, SPI, SSI, UART/USART | I²C, Microwire, SPI, SSI, UART/USART | Microwire, SPI, SSI, UART/USART | Microwire, QEI, SPI, SSI, UART/USART | I²C, Microwire, SPI, SSI, UART/USART | I²C, Microwire, SPI, SSI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 34 | 34 | 34 | 30 | 30 | 32 | 34 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 2x10b | A/D 2x10b | A/D 2x10b | A/D 6x10b | A/D 6x10b | A/D 4x10b | A/D 2x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

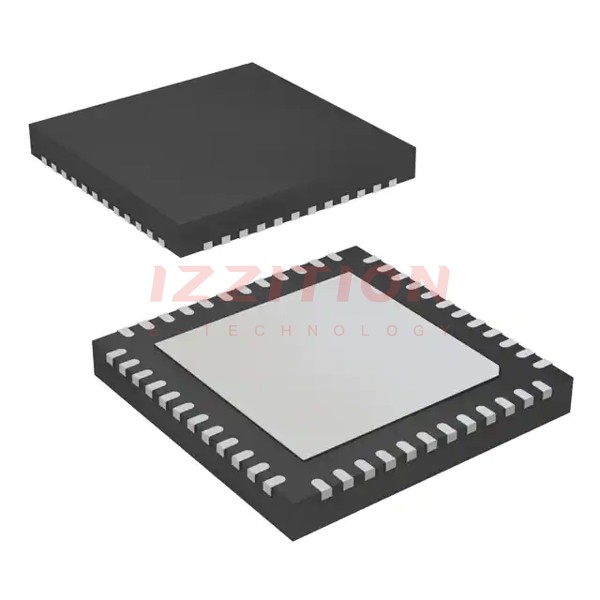

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) |
