Please send RFQ , we will respond immediately.

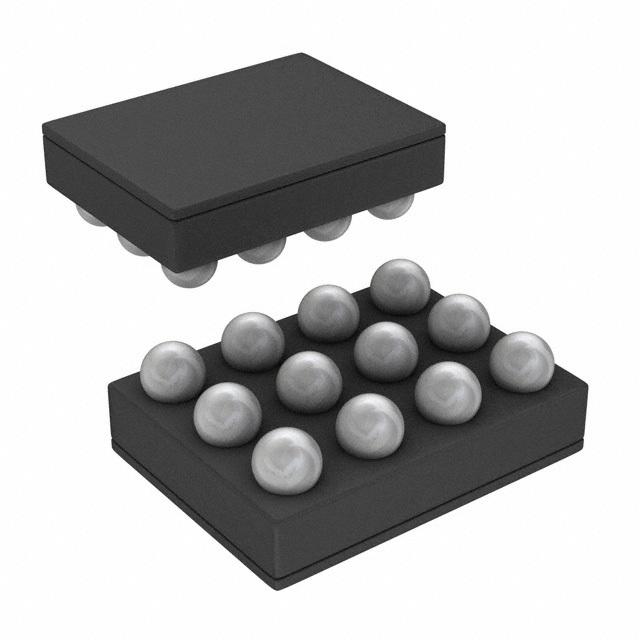

| Part Number | LM3530TMX-40/NOPB | LM3530UMX-40/NOPB | LM3533TMX-40/NOPB | LM3532TMX-40/NOPB | LM3530TME-40/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost), Switched Capacitor (Charge Pump) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 7 | 3 | 1 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 40V | 40V | 40V | 40V | 40V |
| Current - Output / Channel | 30mA | 30mA | 30mA | 30mA | 30mA |
| Frequency | 500kHz | 500kHz | 500kHz, 1MHz | 500kHz | 500kHz |
| Dimming | PWM | PWM | PWM | PWM | PWM |
| Applications | Backlight | Backlight | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFBGA, DSBGA | 12-XFBGA | 20-WFBGA, DSBGA | 16-WFBGA, DSBGA | 12-WFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA | 12-DSBGA (1.22x1.62) | 20-DSBGA | 16-DSBGA | 12-DSBGA |
