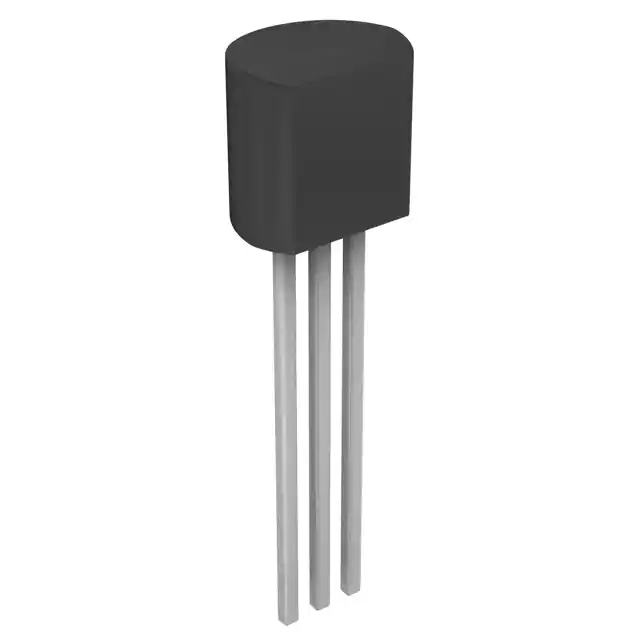

| Part Number | LM336Z-2.5/LFT3 | LM336Z-2.5/LFT7 | LM336BZ-2.5/LFT3 | LM336Z-2.5/LFT1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Active |
| Reference Type | Shunt | Shunt | Shunt | Shunt |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.49V | 2.49V | 2.49V | 2.49V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | 10 mA |
| Tolerance | ±4% | ±4% | ±2% | ±4% |
| Temperature Coefficient | - | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - | - |
| Voltage - Input | - | - | - | - |
| Current - Supply | - | - | - | - |
| Current - Cathode | 400 µA | 400 µA | 400 µA | 400 µA |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
