| Part Number | LM318H/NOPB | LM318M/NOPB | LM318N/NOPB | LM308H/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 70V/µs | 70V/µs | 70V/µs | - |
| Gain Bandwidth Product | 15 MHz | 15 MHz | 15 MHz | - |
| -3db Bandwidth | 15 MHz | 15 MHz | 15 MHz | - |
| Current - Input Bias | 150 nA | 150 nA | 150 nA | 1.5 nA |
| Voltage - Input Offset | 4 mV | 4 mV | 4 mV | 2 mV |
| Current - Supply | 5mA | 5mA | 5mA | 300µA |
| Current - Output / Channel | - | - | - | - |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V | 4 V |
| Voltage - Supply Span (Max) | 40 V | 40 V | 40 V | 36 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |

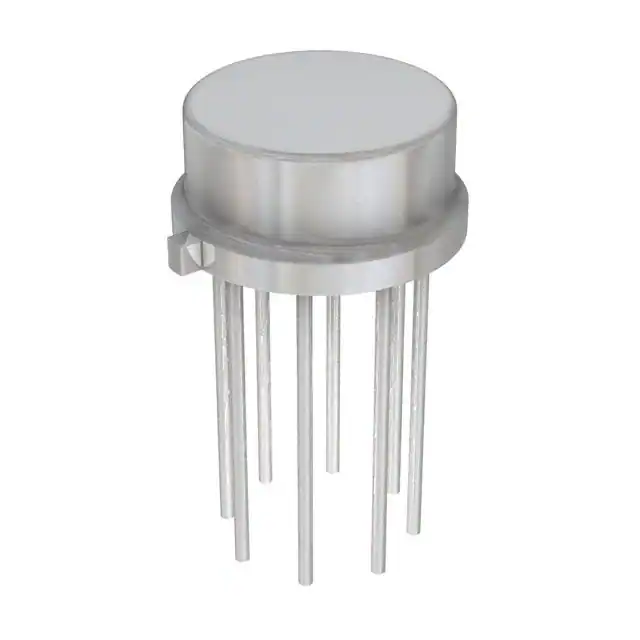

| Package / Case | TO-99-8 Metal Can | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | 8-SOIC | 8-PDIP | TO-99-8 |
