Please send RFQ , we will respond immediately.

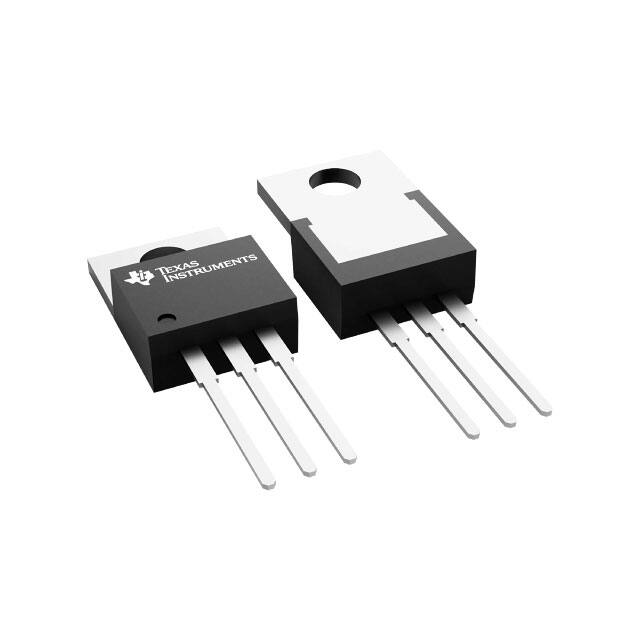

| Part Number | LM317T/LF01 | LM337T/LF01 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Negative |
| Output Type | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 37V | -40V |
| Voltage - Output (Min/Fixed) | 1.25V | -1.2V |
| Voltage - Output (Max) | 37V | -37V |
| Voltage Dropout (Max) | - | - |
| Current - Output | 1.5A | 1.5A |
| Current - Quiescent (Iq) | - | - |
| Current - Supply (Max) | - | - |
| PSRR | 64dB (120Hz) | 77dB (120Hz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), Variant | TO-220-3 |
| Supplier Device Package | TO-220-3, LF01 | TO-220-3 |
