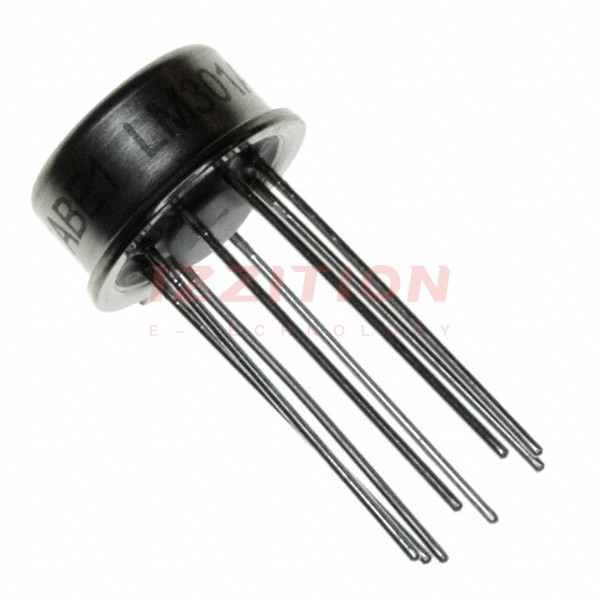

| Part Number | LM301AH | LM301AN | LM301AD |
|---|---|---|---|
| Manufacturer | Texas Instruments | STMicroelectronics | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 0.5V/µs | 0.5V/µs | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 70 nA | 70 nA | 70 nA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV |
| Current - Supply | 1.8mA | 1.8mA | 1.8mA |
| Current - Output / Channel | - | 30 mA | 30 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 44 V | 44 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-99-8 Metal Can | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | TO-99-8 | 8-DIP | 8-SOIC |
