Texas Instruments-LM2903BWDSGRQ1 - Linear - Comparators Product Specifications and Latest Quotes

Type:	General Purpose
Number of Elements:	2
Output Type:	Open-Collector, CMOS, MOS, TTL
Voltage - Supply, Single/Dual (±):	2V ~ 36V
Voltage - Input Offset (Max):	2.5mV @ 5V
Current - Input Bias (Max):	0.003µA @ 5V
Current - Output (Typ):	21mA @ 5V
Current - Quiescent (Max):	600µA
CMRR, PSRR (Typ):	-
Propagation Delay (Max):	300ns (Typ)
Hysteresis:	-
Operating Temperature:	-40°C ~ 125°C

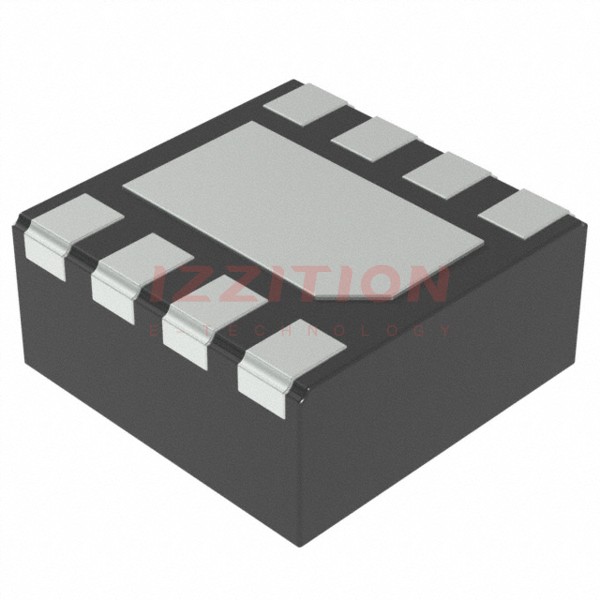

Package / Case:	8-WFDFN Exposed Pad
Mounting Type:	Surface Mount, Wettable Flank
Supplier Device Package:	8-WSON (2x2)

Texas Instruments LM2903BWDSGRQ1
