Please send RFQ , we will respond immediately.

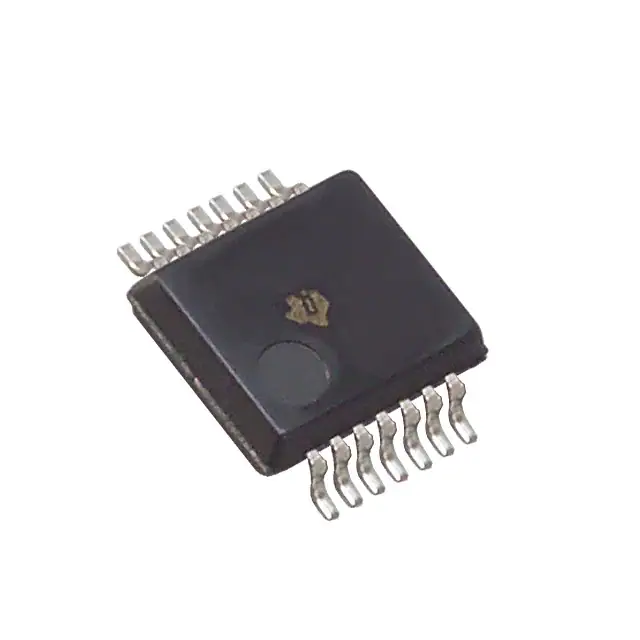

| Part Number | LM2902KDB | LM2902KDR | LM2902KDBR | LM2902KD |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 4 | 4 | 4 | 4 |
| Output Type | - | - | - | - |
| Slew Rate | 0.5V/µs | 0.5V/µs | 0.5V/µs | 0.5V/µs |
| Gain Bandwidth Product | 1.2 MHz | 700 kHz | 1.2 MHz | 1.2 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 20 nA | 20 nA | 20 nA | 20 nA |
| Voltage - Input Offset | 3 mV | 3 mV | 3 mV | 3 mV |
| Current - Supply | 1.4mA (x4 Channels) | 1.4mA (x4 Channels) | 1.4mA (x4 Channels) | 1.4mA (x4 Channels) |
| Current - Output / Channel | 30 mA | 30 mA | 30 mA | 30 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 26 V | 26 V | 26 V | 26 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SSOP | 14-SOIC | 14-SSOP | 14-SOIC |
