Please send RFQ , we will respond immediately.

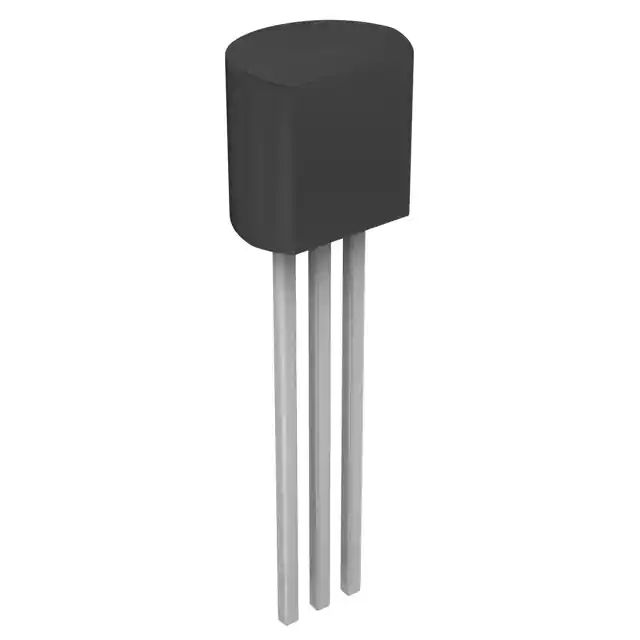

| Part Number | LM285BYZ/NOPB | LM285BXZ/NOPB | LM285BYM/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Reference Type | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V | 1.24V | 1.24V |
| Voltage - Output (Max) | 5.3 V | 5.3 V | 5.3 V |
| Current - Output | 20 mA | 20 mA | 20 mA |
| Tolerance | ±1% | ±1% | ±1% |
| Temperature Coefficient | 50ppm/°C | 30ppm/°C | 50ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - |
| Noise - 10Hz to 10kHz | 50µVrms | 50µVrms | 50µVrms |
| Voltage - Input | - | - | - |
| Current - Supply | - | - | - |
| Current - Cathode | 45 µA | 45 µA | 45 µA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | TO-92-3 | TO-92-3 | 8-SOIC |
