| Part Number | LM27966SQ | LM27966SQX | LM27965SQ |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Obsolete | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 6 | 6 | 9 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 2V ~ 4V | 2V ~ 4V | 2V ~ 4V |
| Current - Output / Channel | 30mA | 30mA | 30mA |
| Frequency | 1.27MHz | 1.27MHz | 1.27MHz |
| Dimming | I²C | I²C | I²C |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

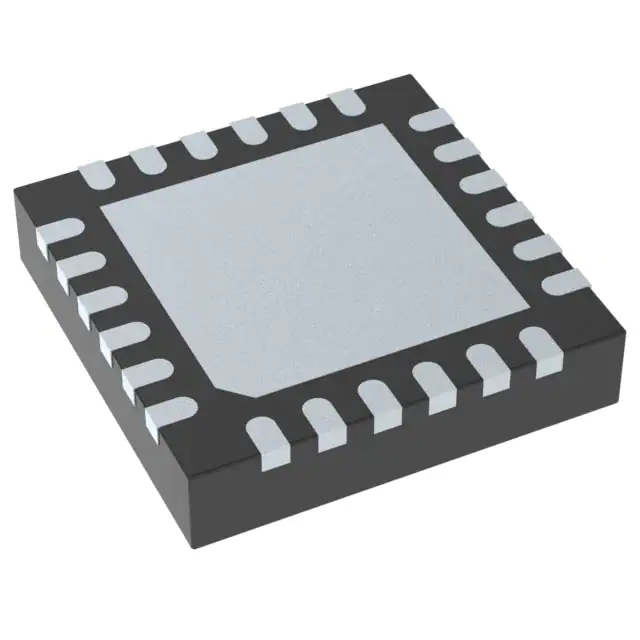

| Package / Case | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) | 24-WQFN (4x4) | 24-WQFN (4x4) |
