| Part Number | LM2677SD-3.3/NOPB | LM2678SD-3.3/NOPB | LM2679SD-3.3/NOPB | LM2677SX-3.3/NOPB | LM2676SD-3.3/NOPB | LM2677S-3.3/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 8V | 8V | 8V | 8V | 8V | 8V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Current - Output | 5A | 5A | 5A | 5A | 3A | 5A |
| Frequency - Switching | 260kHz | 260kHz | 260kHz | 260kHz | 260kHz | 260kHz |
| Synchronous Rectifier | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

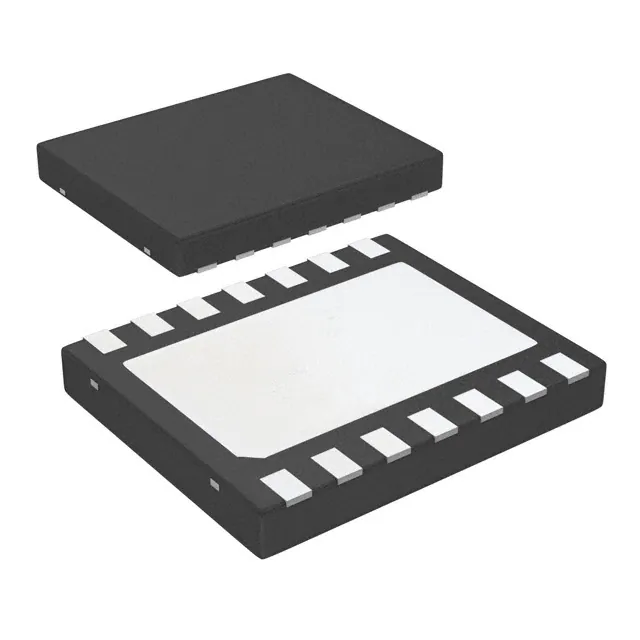

| Package / Case | 14-VDFN Exposed Pad | 14-VDFN Exposed Pad | 14-VDFN Exposed Pad | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | 14-VDFN Exposed Pad | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | 14-VSON (5x6) | 14-VSON (5x6) | 14-VSON (5x6) | DDPAK/TO-263-7 | 14-VSON (5x6) | DDPAK/TO-263-7 |
