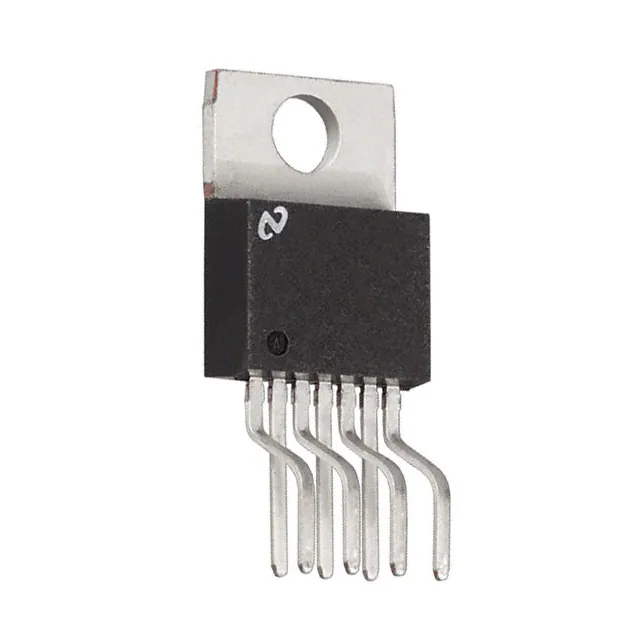

| Part Number | LM2676T-3.3 | LM2677T-3.3 | LM2678T-3.3 | LM2676S-3.3 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 8V | 8V | 8V | 8V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 3A | 5A | 5A | 3A |
| Frequency - Switching | 260kHz | 260kHz | 260kHz | 260kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-220-7 | TO-220-7 | TO-220-7 | DDPAK/TO-263-7 |
