Please send RFQ , we will respond immediately.

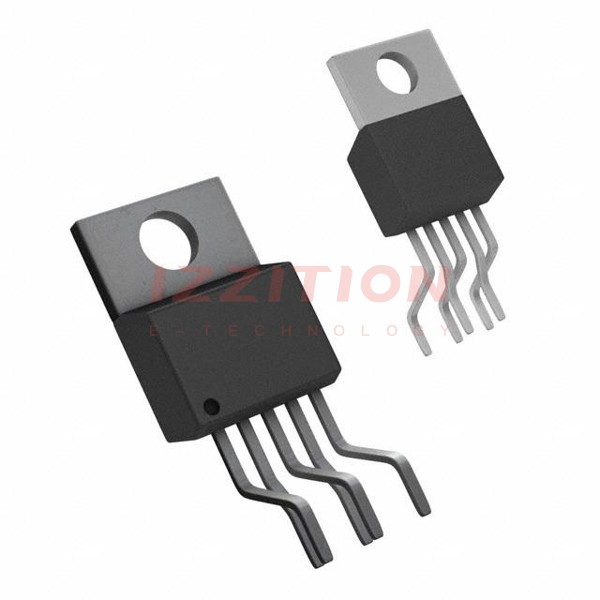

| Part Number | LM2591HVT-3.3 | LM2592HVT-3.3 | LM2593HVT-3.3 | LM2590HVT-3.3 | LM2591HVS-3.3 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | 1A | 2A | 2A | 1A | 1A |
| Frequency - Switching | 150kHz | 150kHz | 150kHz | 150kHz | 150kHz |
| Synchronous Rectifier | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-7 | TO-220-7 | DDPAK/TO-263-5 |
