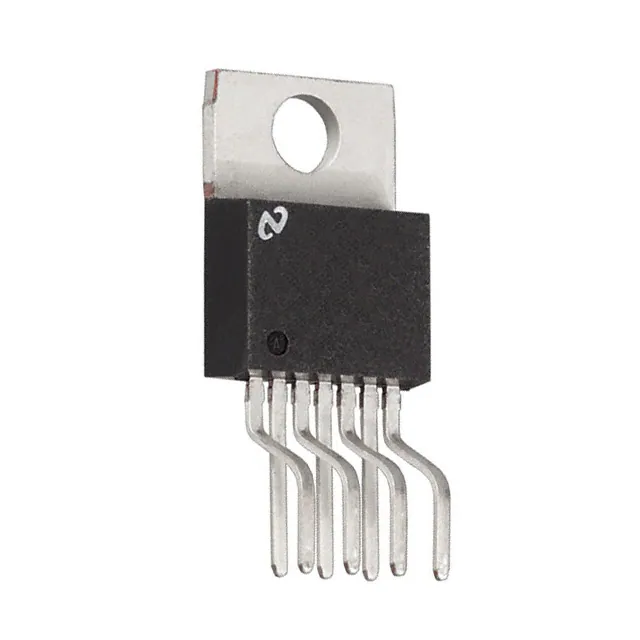

| Part Number | LM2590HVT-ADJ | LM2592HVT-ADJ | LM2591HVT-ADJ | LM2593HVT-ADJ | LM2590HVS-ADJ |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1.2V | 1.2V | 1.2V |
| Voltage - Output (Max) | 57V | 57V | 57V | 57V | 57V |
| Current - Output | 1A | 2A | 1A | 2A | 1A |
| Frequency - Switching | 150kHz | 150kHz | 150kHz | 150kHz | 150kHz |
| Synchronous Rectifier | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-7 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-7 Formed Leads | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-220-7 | TO-220-5 | TO-220-5 | TO-220-7 | DDPAK/TO-263-7 |
