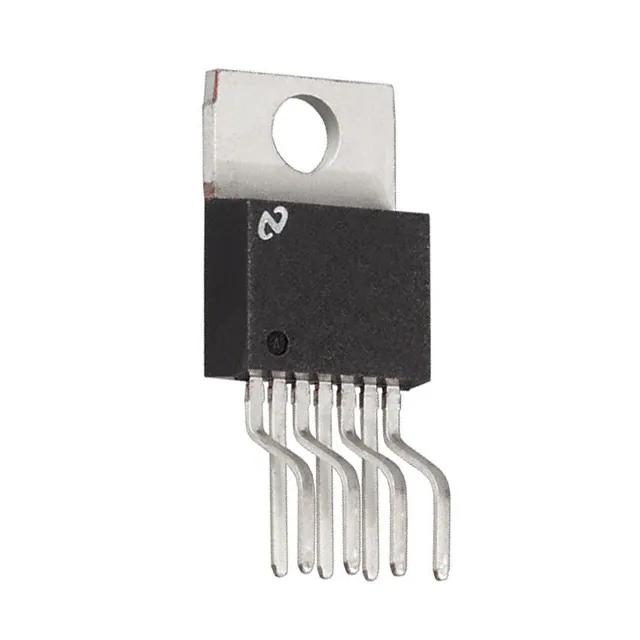

| Part Number | LM2588T-ADJ/NOPB | LM2585T-ADJ/NOPB | LM2586T-ADJ/NOPB | LM2587T-ADJ/NOPB | LM2588S-ADJ/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter | Boost, Flyback, Forward Converter |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V | 4V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.23V | 1.23V | 1.23V | 1.23V | 1.23V |
| Voltage - Output (Max) | 60V | 60V | 60V | 60V | 60V |
| Current - Output | 5A (Switch) | 3A (Switch) | 3A (Switch) | 5A (Switch) | 5A (Switch) |
| Frequency - Switching | 100kHz ~ 200kHz | 100kHz | 100kHz ~ 200kHz | 100kHz | 100kHz ~ 200kHz |
| Synchronous Rectifier | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-7 Formed Leads | TO-220-5 Formed Leads | TO-220-7 Formed Leads | TO-220-5 Formed Leads | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-220-7 | TO-220-5 | TO-220-7 | TO-220-5 | DDPAK/TO-263-7 |
